Auluminator Belt trailer
Aulick Industries manufactures an Aluminum, lightweight, yet strong and durable belt trailer we call the Auluminator. It is ideal for Ag Transportation as it is easy to maneuver in and out of the field. When searching for a trailer with maximum potential and a sleek clean appearance, look no further than our Auluminator Belt Trailer. All specifications on our trailer have been designed and tested for optimum performance in handling any agricultural commodity.
Contact us today and put an Auluminator to the test.
Any trailer in our inventory is available to PURCHASE or RENT!
Call us at 877-285-4258

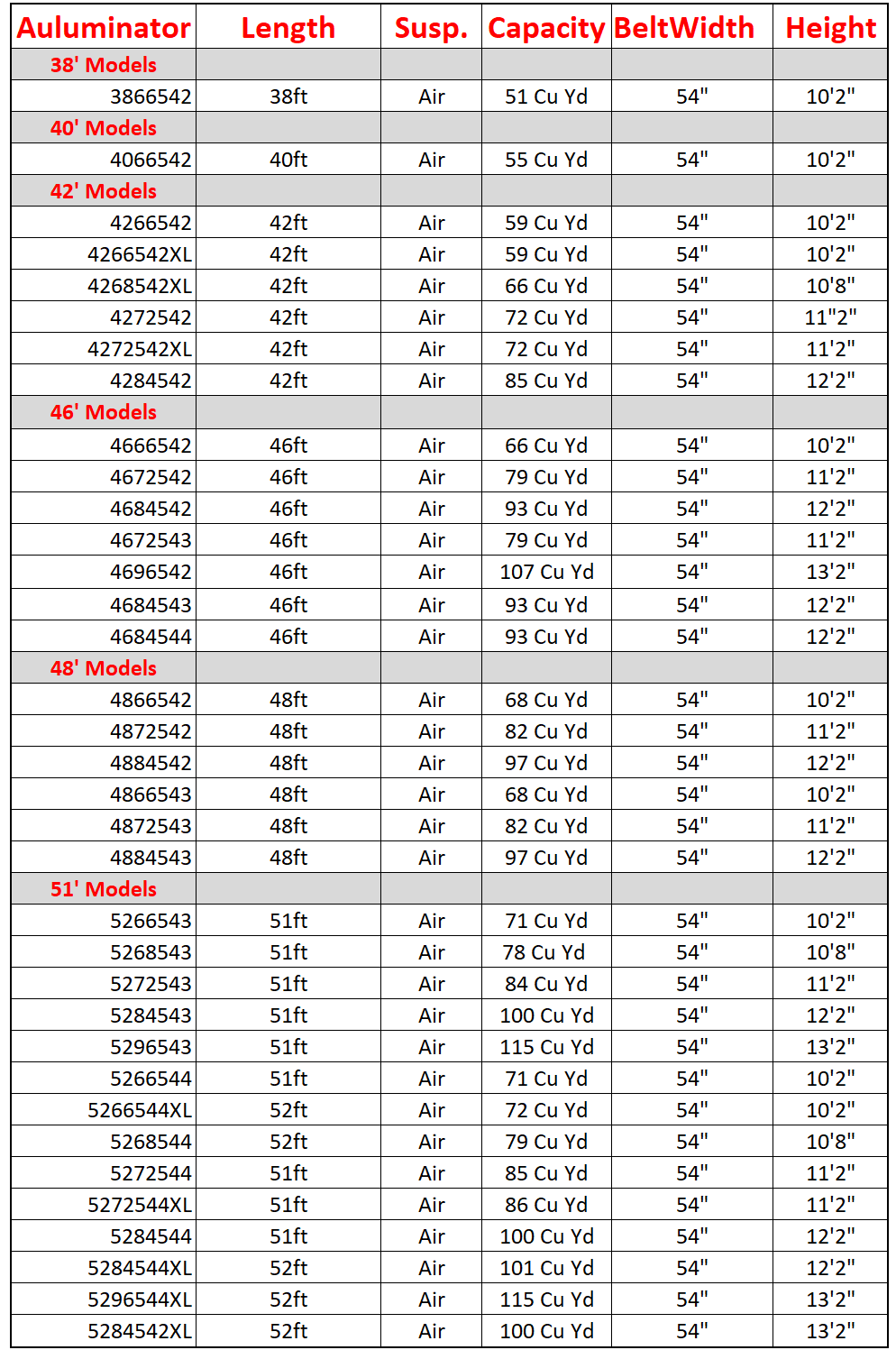

| Auluminator Model | Length | Suspension | Capacity | Belt Width | Height |
|---|---|---|---|---|---|
| 38' Models | |||||
| 3866542 | 38 ft | Air | 51 Cu Yd | 54" | 10'2" |
| 40' Models | |||||
| 4066542 | 40 ft | Air | 55 Cu Yd | 54" | 10'2" |
| 42' Models | |||||
| 4266542 | 42 ft | Air | 59 Cu Yd | 54" | 10'2" |
| 4266542XL | 42 ft | Air | 59 Cu Yd | 54" | 10'2" |
| 4268542XL | 42 ft | Air | 66 Cu Yd | 54" | 10'8" |
| 4272542 | 42 ft | Air | 72 Cu Yd | 54" | 11'2" |
| 4272542XL | 42 ft | Air | 72 Cu Yd | 54" | 11'2" |
| 4284542 | 42 ft | Air | 85 Cu Yd | 54" | 12'2" |
| 46' Models | |||||
| 4666542 | 46 ft | Air | 66 Cu Yd | 54" | 10'2" |
| 4672542 | 46 ft | Air | 79 Cu Yd | 54" | 11'2" |
| 4684542 | 46 ft | Air | 93 Cu Yd | 54" | 12'2" |
| 4672543 | 46 ft | Air | 79 Cu Yd | 54" | 11'2" |
| 4696542 | 46 ft | Air | 107 Cu Yd | 54" | 13'2" |
| 4684543 | 46 ft | Air | 93 Cu Yd | 54" | 12'2" |
| 4684544 | 46 ft | Air | 93 Cu Yd | 54" | 12'2" |
| 48' Models | |||||
| 4866542 | 48 ft | Air | 68 Cu Yd | 54" | 10'2" |
| 4872542 | 48 ft | Air | 82 Cu Yd | 54" | 11'2" |
| 4884542 | 48 ft | Air | 97 Cu Yd | 54" | 12'2" |
| 4866543 | 48 ft | Air | 68 Cu Yd | 54" | 10'2" |
| 4872543 | 48 ft | Air | 82 Cu Yd | 54" | 11'2" |
| 4884543 | 48 ft | Air | 97 Cu Yd | 54" | 12'2" |
| 52' Models | |||||
| 5266543 | 52 ft | Air | 71 Cu Yd | 54" | 10'2" |
| 5268543 | 52 ft | Air | 78 Cu Yd | 54" | 10'8" |
| 5272543 | 52 ft | Air | 84 Cu Yd | 54" | 11'2" |
| 5284543 | 52 ft | Air | 100 Cu Yd | 54" | 12'2" |
| 5296543 | 52 ft | Air | 115 Cu Yd | 54" | 13'2" |
| 5266544 | 52 ft | Air | 71 Cu Yd | 54" | 10'2" |
| 5266544XL | 52 ft | Air | 72 Cu Yd | 54" | 10'2" |
| 5268544 | 52 ft | Air | 79 Cu Yd | 54" | 10'8" |
| 5272544 | 52 ft | Air | 85 Cu Yd | 54" | 11'2" |
| 5272544XL | 52 ft | Air | 86 Cu Yd | 54" | 11'2" |
| 5284544 | 52 ft | Air | 100 Cu Yd | 54" | 12'2" |
| 5284544XL | 52 ft | Air | 101 Cu Yd | 54" | 12'2" |
| 5296544XL | 52 ft | Air | 115 Cu Yd | 54" | 13'2" |
| 5284542XL | 52 ft | Air | 100 Cu Yd | 54" | 12'2" |
-
2 ply belt flaps the full width of the trailer floor
Bolt-on 5th wheel plate
Hydraulic Gear drive 130,000 in-lb, 18,000-pound radial load
2 15/16″ rear driveshaft, with weld-on sprockets and weld on the splined hub
Top hinge hydraulic main gate, with center knife gate and cylinder locks, 12″ clearance above the top rail
A floor liner is 1/4″ thick UHMW plastic
Sides fully lined with 3/16″ HMW plastic to the top
Extended rear discharge with wings on the rear of the trailer
Hydraulic pressure line filter, manual or electric control valve
Hydraulic floor speed control
Side and slope sheets are post and hat riveted aluminum construction
50,000 lb landing gear
ABS brake system
11 x 22.5 on 10 bolt hub pilot aluminum rims
Hendrickson Intraax Air ride suspension with 25,000 lb axles
Various axle combinations are available
Shur-Loc roll tarp
D.O.T. lighting, Reflective tape
Other custom options are available – Just ask!!
-
Manual side-to-side
Electric side-to-side with remote
Fixed Tarp (Main Gate can open without opening tarp.)
-
Tandem Axle Rates Per Month
1 Month = $3,700.00 Per Month
2 Months = $3,500.00 Per Month
3 Months = $3,350.00 Per Month
4 Months = $3,150.00 Per Month
5 Months = $3,050.00 Per Month
6 Months = $2,950.00 Per Month
1 Year = $2,400.00 Per Month
NOTE: For FALL harvest months: July, August, September, October, & November, the minimum rental is 3 months at $3,350.00 for the Auluminator.
Triple Axle Trailers - $300.00 Additional per month
Quad Axle Trailers - $600.00 Additional per month
Portable HYD Wet Kit - $400.00 per month
A $1,500.00 Damage Deposit and an insurance certificate listing Aulick Industries as Loss Payee and Additional Insured.
The first-month lease payment will be due when taking possession of the trailer.
Rent with the option to buy is available with 50% rent back toward the purchase of the rented trailer.
If the rented trailer is purchased within the first 30 days, 100% of the first month’s rent will be credited to the purchase price of the trailer.
The monthly rental amount is based on a maximum mileage use per month of 10,000 miles.
**Mileage use over 10,000 miles per month will be billed at a rate of $0.30 per mile**
-
Per Month
$400.00 Per Month installed on an Aulick Rental Trailer
$500.00 Per Month Wet Kit ONLY Rental
-
